Digital Torque Meter
TS-2800

The TS-2800 is a torque calculation display unit designed for use in combination with our phase-difference torque detectors, including the SS series.
It supports both the long-selling SS series torque detector (potential gear phase difference method) and the TH series torque detector (electromagnetic induction phase difference method).
Because the signal processing circuit uses entirely digital processing, it enables torque measurement with excellent stability, reproducibility, and linearity.
The TS-2800 digitally displays measured values and can output analog voltage, rotational pulse*, BCD*, and RS-232C to external devices. Its compact size means it doesn't take up much space when mounted on a control panel, and it fits neatly next to control equipment within the panel. *Optional

Features

  • All of our phase difference torque detectors can be connected.

  • Depending on the application, you can select the response time (time constant) of the analog output.

  • A 4th-order Butterworth low-pass filter can be selected for torque ripple frequency analysis (TH mode, optional).

  • The full-scale voltage of the torque output signal can be selected to match the input range of the connected device or recorder.

  • It can output rotational pulse signals necessary for rotational tracking analysis of torque ripple (optional).

  • The adoption of an LCD screen makes it easier to see measurement values and setting menus, improving usability.

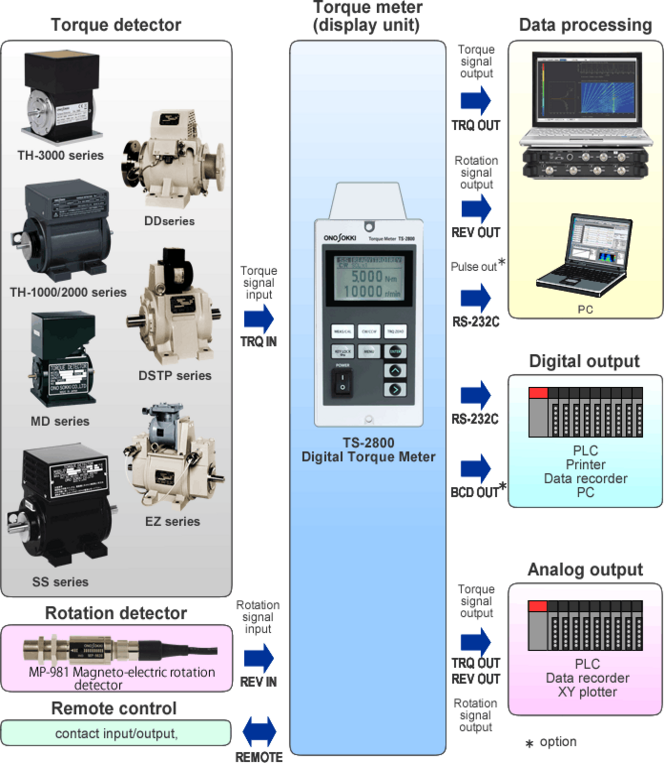

System Configurations

(Products with model names are linked to their respective product pages.)

System Configurations TH-3000シリーズ TH-1000/2000シリーズ MDシリーズ SSシリーズ DSTPシリーズ EZシリーズ DS-5000 O-solution

Case Studies

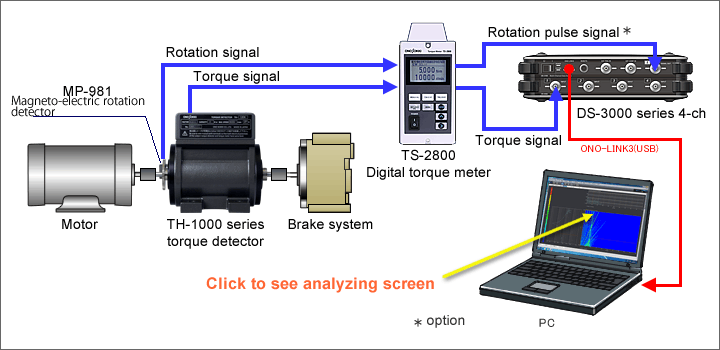

Torque ripple of a small motor at different rotational speeds (rotational speed tracking analysis)

Due to changes in the magnetic flux linkage of the motor, the motor's torque fluctuates repeatedly with a constant period and a constant amplitude. Torque ripple refers to the range of torque fluctuation during motor rotation. By understanding the torque ripple at each motor rotation speed, it is possible to derive solutions to problems such as noise and vibration, and deterioration of controllability generated by the motor.

Torque ripple of a small motor at different rotational speeds (rotational speed tracking analysis)

トラッキング解析画面例 DS-5000 O-solution TH-1000シリーズ トルク検出器 磁電式回転検出器 MP-981

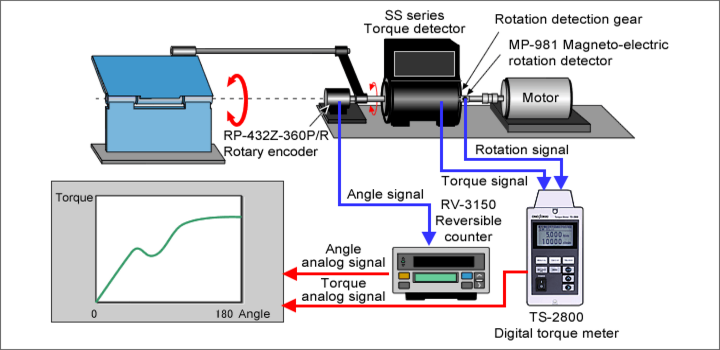

Evaluation of hinge torque characteristics of office automation equipment, mobile phones, etc.

We measure the torque characteristics of hinges used in a variety of applications, including household appliances such as rice cookers and microwave ovens, office automation equipment such as fax machines and photocopiers, and mobile phones and laptop computers.

  • Controlling the force required for opening and closing

  • This is effective for automation and labor saving by analyzing changes in hinge characteristics after prolonged use through tens of thousands of opening and closing tests.

Evaluation of hinge torque characteristics of office automation equipment, mobile phones, etc. SSシリーズ トルク検出器 MP-981 磁電式回転検出器 RP-432Z-360P/R ロータリーエンコーダー

Specification

Compatibility detector Torque detector Phase difference torque detectors (TH, MD, SS, EZ, DSTP)
Rotation detector Magneto-Electric Rotation Detector (MP-981/MP-9820), photoelectric rotation detectors (MD-0100 series)
Or torque detector output signal SIG2 (excluding TH type)
Display section Display content Measured values: Torque value, rotational speed value
Status display: Sensor mode, Measurement ready, Torque signal input, Rotation signal input, Measurement mode, Rotation direction
Update time Measurement values: 1 s / 10 s / external, status display: 0.5 s
Torque measurement unit Number of display digits TH type: 4/5 digit switchable (with polarity), Other types: 4 digits (with polarity)
Units of measurement mN·m, N·m, kN·m
Measurement accuracy Depending on the torque sensor connected
Torque factor
Correction range		 0.8000～1.2000
N-0 (*1) correction CW/CCW 5 points in each direction
Other features Zero value setting, analog output calibration
Analog output Voltage (Isolation, common output)
Range 0 to ±10 V FS
Full scale setting In relation to torque capacity,
Choose from 100% / 66.7% / 50% / 33.3% / 25% / 20%
Responsiveness TH type: 500 ms / 63 ms / 16 ms / 1.6 ms (standard specifications)
0.8 ms / 0.4 ms / 0.16 ms (*2 Additional options available)
Other than TH: 500 ms/ 63 ms (standard specification)
63 ms / 16 ms (*3 Replaceable with option)
Low-pass filter TH type only: 50 Hz / 100 Hz / 500 Hz / 1 kHz / 5 kHz
(*2 Additional options available)
Output accuracy ±0.1% FS, or ±0.2% FS
(Depending on detector accuracy)
Rotation speed measurement unit Number of display digits 5 digits (0 to 99,999 r/min)
Measurement accuracy ±0.02 % FS ±1 count (10 Hz or more, 1 second average)
Full scale value range 200–100,000 r/min (settings can be adjusted in 1 r/min increments)
Rotation detector
pulse count range		 1 to 9999 P/R (Settings can be configured in increments of 1 P/R)
Analog output Voltage (Isolation, common output)
Output range 0-10 V FS
Responsiveness TH: 0.16 ms, other than TH: 63 ms
Output accuracy ±0.1% FS
Alternatively, ±0.2% FS (when using SIG2 for the rotation signal)
Rotation pulse output
(*4)		 Outputs the pulse signal input to the rotation sensor terminal.
Output level Lo: +0.5 V or less, Hi: +5±0.5 V
External Interface Remote
control		 Input fields Forward/reverse rotation switching, display/output clear, display/BCD trigger.
Output items Trigger output (update synchronization), measurement preparation complete.
Input format Dry contact or logic input (Lo: 0 to 1.4 V, Hi: 3 to 5.25 V)
Output format Voltage-free contact output (photomoss relay output)
Compatible connectors FK-MC0,5/8-ST-2,5 (manufactured by Phoenix Contact) included.
RS-232C function Reading of measured values, setting of zero values, setting of N-0 values, setting/reading of various functions
Baud rate 9600 bps (fixed)
Compatible Cables AX-5022B (2m)
General specifications Power supply voltage AC 100-240 V, 50/60 Hz
Operating temperature range 0 to +40 ℃
Weight Approximately 2 kg

*1 N-0: Rotational dependence of zero torque. This occurs due to the characteristics of the detector and lost torque from bearings, etc., between the torque detector and the object being measured.
*2 to *4 are features that become active when the corresponding options are installed.

Option

TS-0281 High-speed response output function for TH (*2) See above (*2) for specifications.
TS-0282 Time constant modification for DD (*3) See above (*3) for specifications.
TS-0283 BCD output function Output data Torque (with polarity, no decimal point, 5 digits), rotational speed (5 digits), print command
Input data Hold, Busy
Output method Positive logic open collector
Input method Dry contact input, or logic input (Lo: 1.4 V or less, Hi: 3 to 5.25 V)
Compatible connectors DX40-50P (crimp connector) or DX30-50P (solder connector), DX-50-CV1 (cover) (manufactured by Hirose Electric Co., Ltd.)
TS-0284 Rotation pulse output function (*4) See above (*4) for specifications.

*2 to *4 are features that become active when the corresponding option is installed.
