クランク角度測定システム
CP-5110B/CA-6000B

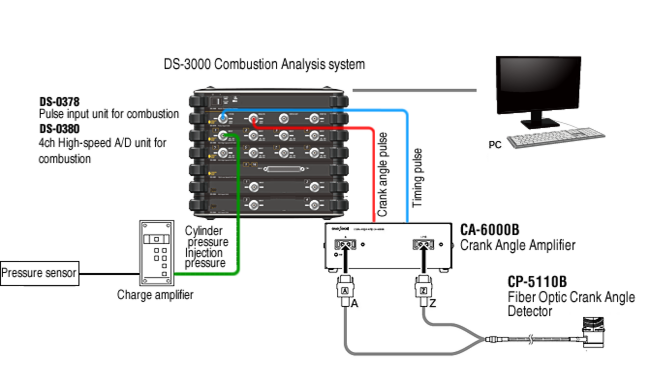

The CP/CA series is a system for detecting the rotation angle of an engine's crankshaft, consisting of the CP-5110B fiber optic crank angle detector, the CA-6000B crank angle amplifier, and the CP-5120/CP-5130 slotted discs.
The CP-5110B crank angle detector accurately and quickly detects the crankshaft rotation angle required for various engine performance tests, such as combustion analysis. Because it uses an optical fiber light transmission and reception method, it does not contain any internal electrical circuits, resulting in excellent vibration and noise resistance.
The CA-6000B takes the signal from the crank angle detector as input and outputs a TTL-level angle signal and a 1P/R pulse signal.
| Compatible amplifier | CA-6000B / CA-6000A* *Discontinued products |
|---|---|
| Cable | 5m direct-mount optical fiber (protected by flexible stainless steel tubing, etc.) |
| Output signal | A, Z |
| Body material | Duralumin, brass (Cd-free material) |
| Vibration resistance and acceleration | 490 m/s2 |
| Maximum rotational speed | 20,000 r/min |
| Operating temperature range | 0 to 100°C |
| Outline drawings | 30(W)×42.5(H)×35(D)mm
|
| Weight | Approximately 270g |
| price | |
| Option | ・CP-5120 スリット円盤（360 P/R、1 P/R）： ・CP-5130 スリット円盤（720 P/R、1 P/R）： ・IX-041 延長ファイバーケーブル（5 m）： ・IX-042 延長ファイバーケーブル（10 m）： |
