Accelerometer signal cables and accessories

Model name	length	Connection source (sensor)	Specifications/Appearance
NP-0121	1.5 m	NP-2120, NP-2810, NP-3120, NP-3121, NP-3130, NP-3131 (NP-2130, NP-3910 ^2, NP-510, NP-510I, NP-520, NP-520I, NP-550, NP-560 ^2, NP-602 ^1) ^3	Operating temperature range: -25 to +105 °C Cable diameter: ⌀1.2 mm Type: Low-noise cable
NP-0122	3 m
NP-0123	5 m
NP-0124	10 m
NP-0181	1.5m	NP-2120, NP-2810, NP-3120, NP-3121, NP-3130, NP-3131 (NP-2130, NP-3910 ^2, NP-510, NP-5101, NP-520, NP-5201, NP-550, NP-560 ^2, NP-602 ^1) ^3	Operating temperature range: -40 to +200 °C Cable diameter: ⌀2.4 mm Cable type: Low-noise cable Cable material: Silicone Connector shape: Hexagonal
NP-0182	3m
NP-0183	5m
NP-0184	10m
NP-0143	5 m	NP-3331C, NP-3331N30 (NP-3331, NP-3331A, NP-3331N20) ^*3	Operating temperature range: -20 to +110 °C Cable diameter: ⌀4.2 mm
NP-0144	10 m
NP-0146	20 m
NP-0148	30 m
NP-0411	0.48m ^*4	NP-3331C, NP-3331WC, NP-3331N30	Operating temperature range: -20 to +85 °C Cable diameter: φ4.2 mm
NP-0151A	1.5m	NP-2910 ^1, NP-3110 ^1, NP-3412, NP-3414, NP-3418	Operating temperature range: Micro connector -20 to 160 °C Miniature connectors -20 to 110 °C Cable diameter: ⌀1.2 mm Type: Low-noise cable
NP-0152A	3 m
NP-0153A	5 m
NP-0154A	10 m
NP-0162	3 m	NP-2710	Operating temperature range: -90 to +260 °C Cable diameter: ⌀2.0 mm Type: Low-noise cable
NP-0164	9 m	NP-2710
NP-0172A	3 m	NP-3211 ^*1	Operating temperature range: -90 to +260 °C Cable diameter: ⌀1.1 mm

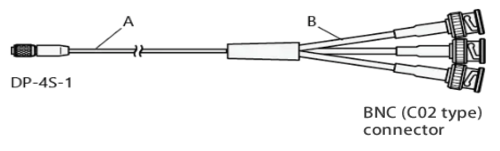

NP-0222	3 m	NP-3572, NP-3574, NP-3576N20, NP-3578N20 (NP-3560, NP-3576N10, NP-3578N10) ^*3	Operating temperature range: Part A = -50 to +125 °C, Part B = -20 to +60 °C Cable diameter: Section A = ⌀2.6 mm, Section B = ⌀2.1 mm
NP-0232	3 m		Operating temperature range: Part A = -50 to +125 °C, Part B = -20 to +60 °C Cable diameter: Section A = ⌀2.6 mm, Section B = ⌀2.1 mm
NP-0213	5 m	NP-3572, NP-3574, NP-3576N20, NP-3578N20 (NP-3560, NP-3576N10, NP-3578N10) ^*3 Extension cable for use	Operating temperature range: -51 to +125 °C Cable diameter: ⌀2.6 mm
NP-0214	10 m
NP-0252	3 m	NP-3560B, (NP-3560A) ^*3	Operating temperature range: -90 to +200 °C Cable diameter: Section A = ⌀2.54 mm, Section B = ⌀1.96 mm
NP-0262	3 m	NP-3560B, (NP-3560A) ^*3	Operating temperature range: -90 to +200 °C Cable diameter: Section A = ⌀2.54 mm, Section B = ⌀1.96 mm
NP-0243	6 m	NP-3560B (NP-3560A) ^{*Extension cable for unit #3}	Operating temperature range: -90 to +200 °C Cable diameter: ⌀2.54 mm
NP-0272	3 m	NP-3550	Cable material: Part A: Teflon, Part B: Teflon Operating temperature range: Part A -90 to +200 °C, Part B -90 to +204 °C Cable diameter: Section A = ⌀1.96 mm, Section B = ⌀1.9 mm
NP-0273	6.1 m		Cable material: Part A - Silicone, Part B - Teflon Operating temperature range: Part A -60 to +260 °C, Part B -90 to +204 °C Cable diameter: Section A = ⌀1.8 mm, Section B = ⌀1.9 mm
NP-0274	9.1 m		Cable material: Part A: Teflon, Part B: Teflon Operating temperature range: Part A -90 to +200 °C, Part B -90 to +204 °C Cable diameter: Section A = ⌀1.96 mm, Section B = ⌀1.9 mm
NP-0291	1.5m	Conversion cable for NP-3550 Used when using NP-0252, NP-0262, and NP-0243.	Cable material: Teflon Operating temperature range: -90 to +200 °C Cable diameter: ⌀1.96 mm
NP-0322	3.3 m	NP-3564N10	Operating temperature range: A: -50 to +120 °C, B: -20 to +60 °C Cable diameter: Section A = ⌀2 mm, Section B = ⌀2.1 mm
NP-0332	3.3 m	NP-3564N10	Operating temperature range: A: -50 to +120 °C, B: -20 to +60 °C Cable diameter: Section A = ⌀2 mm, Section B = ⌀2.1 mm
NP-0313	5 m	Extension cable for NP-3564N10	Operating temperature range: -50 to +120 °C Cable diameter: ⌀2 mm
NP-0314	10 m	Extension cable for NP-3564N10
NP-0732	0.4 m	Branch cable for NP-7320N10	Operating temperature range: -15 to 60 °C Cable diameter: ⌀2.5 mm
NP-0733	5 m	Signal cable for NP-7320N10	Operating temperature range: -20 to 80 °C Cable diameter: ⌀4.9 mm
NP-0734	10 m	Signal cable for NP-7320N10

Model name	Usage example	Exterior	Price (tax included)
NP-0020

Model name	Usage example	Exterior	Price (tax included)
NP-0021

Model name	Specification	Compatible sensors
NP-0100	Mass: 22 g Adsorption force: 120 N	NP-3130, NP-3131, NP-3310, NP-3331C, NP-3331N30 (NP-2130, NP-3331A, NP-3331N20, NP-4120, NP-520, NP-520I) ^*
NP-0101	Mass: 12 g Adsorption force: 30 N	NP-2120, NP-3120, NP-3121, NP-3572, NP-3574, NP-3576N20, NP-3578N20 (NP-3576N10, NP-3578N10, NP-3910, NP-510, NP-510I) ^*
NP-0102	Mass: 10 g Adsorption force: 30 N	NP-3110, NP-3412, NP-3414, NP-3418 If you use the flat table NP-0042 NP-2110, NP-2910, NP-3211, NP-3560B (Also usable with NP-3210, NP-3560A, NP-602) ^
NP-0103	Mass: 2.2 g Adsorption force: 4.0 N	NP-3412, NP-3414, NP-3418
NP-0104	Mass: 4.5 g Adsorption force: 40 N	NP-3564N10
NP-032	Mass: 34 g Adsorption force: 40 N	NP-2120, NP-2810, NP-3120, NP-3121, NP-3130, NP-3131, NP-3310 (NP-2130, NP-3910, NP-510, NP-510I, NP-520, NP-520I) ^*

Easy installation with a magnet. Attach it to the object to be measured that the magnet can adhere to, and use it for measurement.

Model name	Specification	Compatible sensors	Exterior	Price (tax included)
NP-033	Material: SUS303	NP-2120, NP-2810, NP-3120, NP-3121, NP-3130, NP-3131, NP-3331C, NP-3331N30, NP-3310 (excluding three-axis Accelerometer)

[Example of use] This device is used for multi-point measurement or when the sensor mounting area is narrow and measurement is difficult.

Model name	Specification	Compatible sensors
NP-031	Material: SUS303	NP-2120, NP-2810, NP-3120, NP-3121, NP-3130, NP-3131, NP-3331C, NP-3331N30, NP-3310, NP-3572, NP-3574, NP-3576, NP-3578
NP-0032	Material: Titanium	NP-2710, NP-3418, NP-3560B, NP-3560A ^*
NP-0035	Material: Aluminum, insulating coating (3 pieces/package)	NP-2710, NP-3418, NP-3560B, NP-3560A ^*

Protection for the sensor's base. Used when attaching and detaching the sensor to the object being measured without damaging the sensor's base.

Model name	Specification	Compatible sensors	Exterior	Price (tax included)
NP-0061	Material: ABS resin Mass: Approx. 1.7 g	NP-3572, NP-3574, NP-3576N20, NP-3578N20, NP-3576N10 ^, NP-3578N10 ^		(5個/パッケージ)
NP-0062		NP-3564N10		(5個/パッケージ)

Using the mounting clip prevents accidents such as applying adhesive to the NP-3574 unit and stripping the screw holes, or applying excessive force when removing it and causing the NP-3574 to malfunction.
Furthermore, by attaching mounting clips to several locations on the object being measured, the NP-3574 can be easily moved, thus shortening the measurement time.
