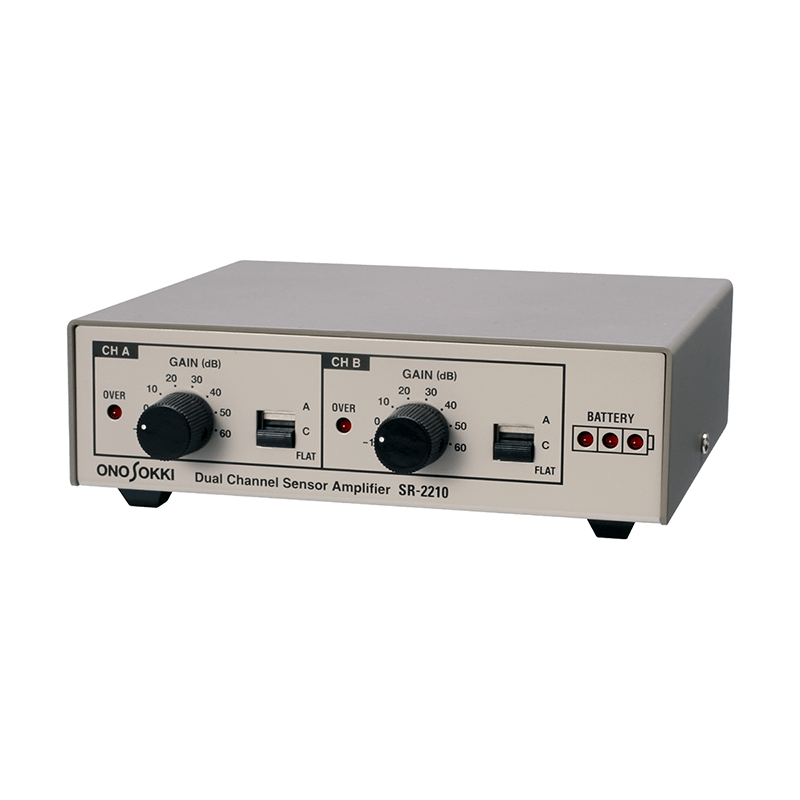

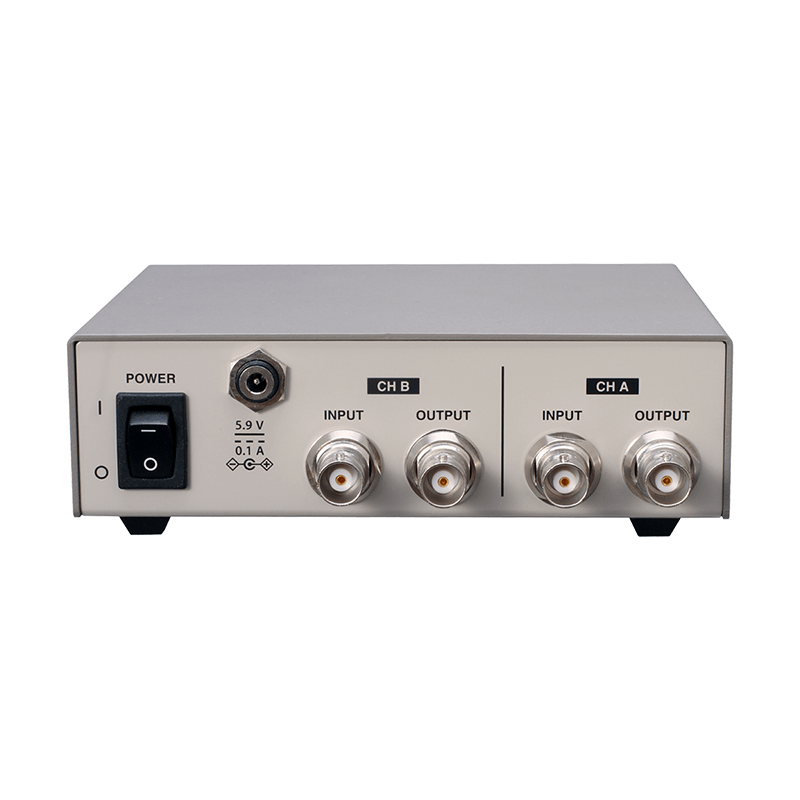

2-channel Sensor Amplifier
SR-2210

The SR-2210 is a 2-channel sensor amplifier for inputting to analyzers and recorders such as DAT that do not support constant current drive (CCLD) sensors.
It can connect to compact and versatile BNC cable compatible MI-3111, MI-3170* micro hump preamplifiers and NP-3000 series accelerometers.
Since the SR-2210 is compact, lightweight, and battery-operated, it allows for easy measurement preparation and enables the construction of a low-cost measurement system.

Notice of Discontinuation of Sales

The SR-2210 has been discontinued. Please check the successor product (SR-2210A) here.

Features

  • With 2-channel input, simultaneous measurement of sound pressure, vibration, and sound insulation is possible.

  • Corresponding to frequency correction characteristics (A, C, Z(FLAT)).

  • Dual power supply method: battery-operated / AC adapter (optional: PB-7090)

  • Can be stacked and fixed, supports multi-channeling.

  • back
    back

Specifications

Constant current power supply Current: 2.4 mA / Applied Voltage: Approximately 18 V
Number of Channels 2 channels
Use frequency range 1 Hz to 20 kHz (±0.5 dB), load impedance 100 kΩ or higher
input impedance 1 MΩ ± 0.5 %
Input cutoff frequency Approximately 0.16 Hz
Input Voltage Range Maximum 12.5 dBVrms (±6 V)
Gain −10, 0, 10, 20, 30, 40, 50, 60 dB
(10 dB step 8 levels switch, ±0.2 dB)
Frequency weighting characteristic A, C, Z (FLAT) (Applicable standards: IEC 61672:2002 Class 1, JIS C 1509:2005 Class 1)
Output cut-off frequency Approximately 0.2 Hz (load impedance of 100 kΩ or more)
Approximately 0.4 Hz (load impedance of 50 kΩ or more)
Input conversion self-noise A below -105 dBVrms
C below -100 dBVrms
Z(FLAT) below -95 dBVrms
Input and Output Connector BNC (CO2)
Output Voltage Range Maximum 12.6 dBVrms (±6 V)
Maximum output extension within 30 meters
Power Supply 4 pieces AA batteries
External power: PB-7090*​ AC adapter (optional)
*PB-7090 is not compatible for SR-2200. Do not connect and use it in this manner. It may cause malfunction.
Continuous Operation Time More than 20 hours (when using AA alkaline batteries (LR06))
Operating temperature range -10 to +50 °C
Storage Temperature Range -20 to +60 °C
Operating Humidity Range 30 to 90%
Storage Humidity Range 10 to 90 %
Outline Dimensions 140 (W) × 40 (H) × 125 (D) mm (excluding protrusions)
Weight Approximately 500 g (including the battery)
Accessories User manual, 4 AA batteries (LR06)
Price

Operation is not guaranteed when connected to MI-1282M10.

System Configurations

Model name   Length Price (including tax) Operating temperature range
MX-1001 Low/High Temperature Specification Signal Cable
Composition No.1		 1.5 m   -30 to +80 °C
MX-1005 5 m
MX-1020 20 m
MX-2001 Composition No.2 1.5 m   0 to +60 °C
MX-2005 5 m
MX-2020 20 m
