Crank Angle Detector
Discontinued Products
CP-5900

PA-500A
PA-500A
PP-932 / PP-933
PP-010A / 011B

The crank angle detection system consists of a crank angle sensor, a slotted disc, and a power supply box with a built-in amplifier. By simply attaching the slotted disc and crank angle sensor to the end of the engine's crankshaft, the rotation angle of the crankshaft can be detected accurately and with high responsiveness in engine performance tests and other applications.
It can be used as a timing signal for acquiring combustion pressure data within the cylinder in combustion analysis, and as an angle signal for measuring and controlling ignition timing.
We have prepared two types of pulses: one for TDC (Top Dead Center) detection (1 P/R) and crankshaft 360 P/R, and another for TDC (Top Dead Center) detection (1 P/R) and crankshaft 720 P/R.

Features

  • High performance, high precision

  • Its compact size and lightweight design provide exceptional vibration resistance.

  • Very fast frequency response

  • Ideal for various engine performance tests, such as combustion analysis.​

  • Simple setup; just attach it to the end of the engine's crankshaft.

System Configurations

  • System Configurations

  • PP-932 + PP-010A + PA-500A
    (Reference pulse (1P/R) for TDC (Top Dead Center) detection and 360P/R for crankshaft)

  • PP-933 + PP-011B + PA-500A
    (Reference pulse (1P/R) for TDC (Top Dead Center) detection and 720P/R for crankshaft)

Specification

PP-932/PP-933 U-shaped detector

Model name PP-932 PP-933
Exterior PP-932 PP-933
Number of output pulses 360 P/R and 1 P/R 720 P/R and 1 P/R
Suitable slit disc PP-010A PP-011B
Response frequency DC to 80 kHz DC to 80 kHz
Rotation Speed Range 0–6,000 r/min 0–6,000 r/min
Output signal voltage “Hi”+4.5V or more, “Lo”+0.2V or less “Hi”+4.5V or more, “Lo”+0.2V or less
Load resistance 470 Ω or more at DC 5 V, 2.2 kΩ or more at DC 12 V
Weight Approximately 250g
Output connector R03-PB-8M
PIN number
PIN number signal
A ANGLE (360 P/R or 720 P/R)
B TDC (1 P/R)
C DC 5V or DC 12V
D Vacant
E COM
F Cable shielding
G Vacant
H Vacant
Operating temperature range 0～+65℃
Storage temperature range -10～+70℃
Power supply DC +4.75 to 5.25 V, 60 mA, DC +11.4 to 12.6 V, 60 mA

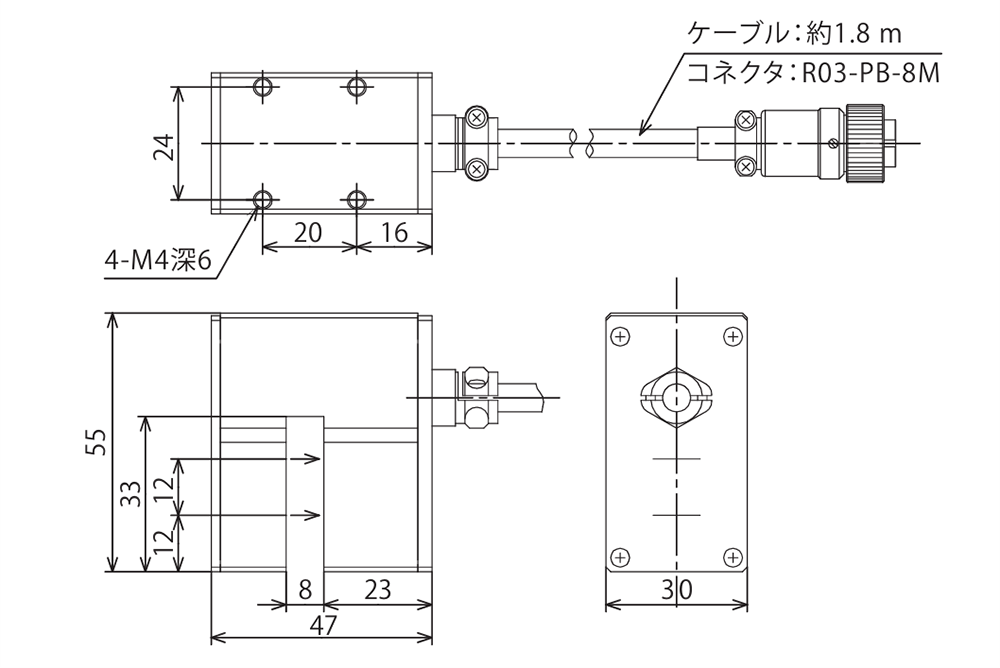

Outline drawings Outline drawings
price

PP-010A/PP-011B Slit Disc

Model name PP-010A PP-011B
Material stainless stainless
diameter Φ 200 mm Φ 200 mm
Rotation Speed Range 0–6,000 r/min 0–6,000 r/min
Number of pulses 360 P/R and 1 P/R 720 P/R and 1 P/R
Compatibility detector PP-932 PP-933
Acceleration resistance Approximately 200 m/s2
Weight Approximately 115g Approximately 70g
Reinforcement plate: approximately 320 g (total of 2 plates)
price

PA-500A Crank Angle Detector Amplifier

Input Impedance 1KΩ or more
Response frequency DC to 80 kHz (360 P/R)
DC to 80 kHz (720 P/R)
Output voltage signal “Hi”+4.5V or more, “Lo”+0.2V or less
Output circuit Output circuit
Power source for emitter and receiver DC +12 V, 100 mA
Load resistance 10KΩ or more
Input/Output signal transmission time Less than 4 μs (at 80 kHz)
Withstand voltage AC 1500 V, 1 minute
Insulation resistance 10 MΩ or higher (measured with a DC 500 V megger)
Weight Approximately 1.2 kg
Operating temperature range 0～+40℃
Storage temperature range -10～+70℃
Power supply AC 100V to 240V, 50/60Hz, 6VA
Outline drawings 200 (W) × 100 (H) × 135 (D) mm (excluding protrusions)
price
