Motor Torque Measurement System Torque Station Pro
TS-8700

Left: MT series detector Right: Torque Station Pro TS-8700

The Torque Station Pro TS-8700 is a motor basic characteristic measurement system with significantly improved specifications and functions. Combined with the MT-type motor torque detector equipped with a TH-type torque detector, it enables high-precision, high-response motor torque measurement with a maximum sampling rate of 5.12 kHz and an accuracy of ±0.1% FS. Furthermore, a lineup incorporating the compact, high-rigidity RH series torque detector (10 N･m / 20 N･m) has been added. This allows for even higher-precision motor torque measurement (±0.05% FS). This system is ideal for measuring torque fluctuations in automotive motors, such as EPS motors.

Features

A wide range of products to accommodate various motors.

It incorporates a motor torque sensor switching function and supports 2 channels as standard, with up to 4 channels available as an option.
Furthermore, a wide range of MT series detectors are available for the TS-8700, enabling characteristic measurement of a diverse variety of motors.
We offer 58 different detector models across three series: one for high-speed rotating motors, one for high-capacity motors, and one for torque ripple and cogging torque measurement, allowing you to choose the model that best suits your application.

High precision and high response

When combined with an MT detector equipped with a TH-type torque detector, it is possible to measure torque with an accuracy of ±0.1% FS and a maximum sampling frequency of 5.12 kHz.

Furthermore, we have added support for the new compact, high-rigidity torque detector, the RH type. The RH type torque detector (10 N･m/20 N･m) is a torque detector that achieves high accuracy (±0.05 % FS) and high rigidity (4.5 times that of conventional models), enabling more accurate measurement of motor torque fluctuations up to higher frequency ranges.

Temperature measurement, temperature trigger function

We have added optional support for 8-channel temperature measurement and temperature triggering functions using T-type thermocouples. This allows for automatic measurement after warm-up, improving work efficiency.

Rotation angle measurement, rotation angle sampling

The built-in encoder pulse of the motor under test enables rotation angle measurement and angle sampling measurement.
Furthermore, by adding an optional encoder to the MT-82 T/M series (excluding some models) for cogging torque and torque ripple measurement, it becomes possible to measure rotational angle and angle sampling in 0.1° increments.

Power meter digital communication

It can connect to power meters from other manufacturers via LAN, allowing for digital acquisition of measured data.
Our designated power meters include the following five models:

Yokogawa Electric Corporation: WT1800R, WT1800E, WT300E (using WTViewerEfree*1 Ver1.72 or later)
HIOKI E.E. CORPORATION: PW3390, PW3337 (using PW Communicator*2 Ver1.7.0 or later)
PW8001 (Configured using the device's keypad or browser. No special software is required.)
*Note: The TS-8700's data update interval is limited to a maximum of 50 ms.
The TS-8700 requires DSP version 201 or higher and software version 2.2.0.0 or higher.
Please contact us regarding compatibility with existing equipment.

*:option
*1: WTViewerEfree is a trademark of Yokogawa Electric Corporation.
*2: PW Communicator is a trademark of HIOKI E.C.

Selectable mounting frame and fixtures for the equipment configuration.

You can configure the device by selecting from tabletop stands, floor stands with casters, XYZ stages, slide bases, V-blocks, and L-shaped fixtures according to the size of the test specimen and the installation location. However, there are limitations on selection depending on the torque capacity of each series.

Video

Video

MT/TS Series
Cogging Torque Measurement Procedure

Watch the video

Case Studies

Measurement and Analysis Examples

  • Measurement and Analysis Examples
    Motor characteristics
  • Efficiency calculation and display are possible (a separate current-voltage detector is required).
    Efficiency calculation and display are possible (a separate current-voltage detector is required).
  • The data can be used with word processing software and spreadsheet software.
    The data can be used with word processing software and spreadsheet software.
  • Torque ripple measurement data
    Torque ripple measurement data
  • Rotation-torque characteristic measurement data
    Rotation-torque characteristic measurement data

Application/Example

Measurement of the rotational torque characteristics of a DC motor

  • Measurement of the rotational torque characteristics of a DC motor

  • This software measures the torque, rotational speed, current, and voltage of a DC motor and displays their characteristics graphically. Furthermore, it can also display efficiency through internal calculations.

  • Motor voltage and current are measured separately using a voltage/current detector (custom-made) or power meter.

Customer testimonials

Examples of applications for torque detectors and torque stations

Examples of applications for torque detectors and torque stations

Microtech Laboratory Co., Ltd.

In direct-drive motors that output high torque from low rotation speeds, reducing the cogging torque, which is a bottleneck, enables highly precise operation.

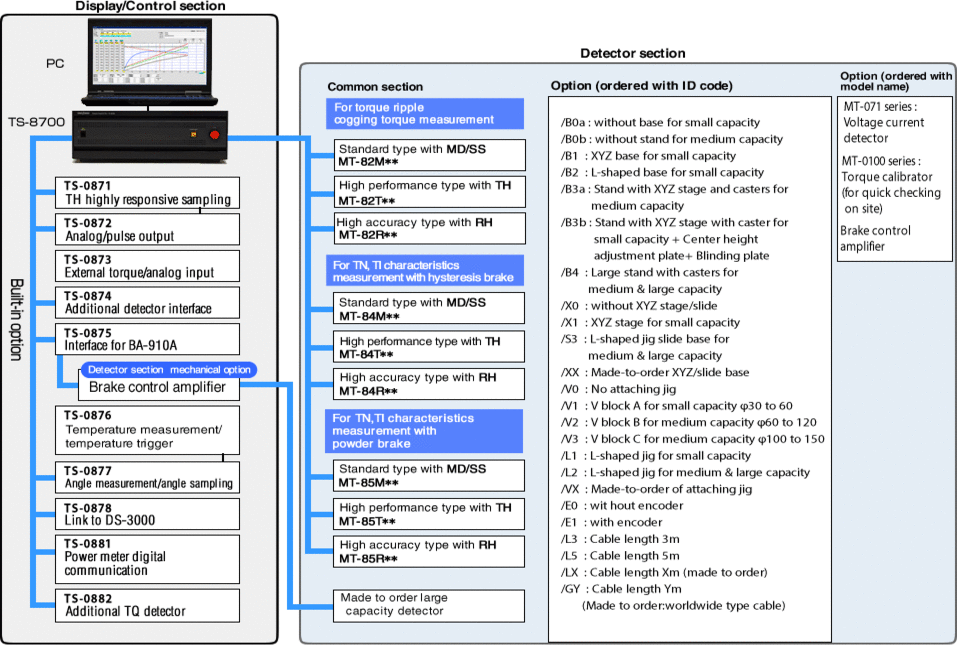

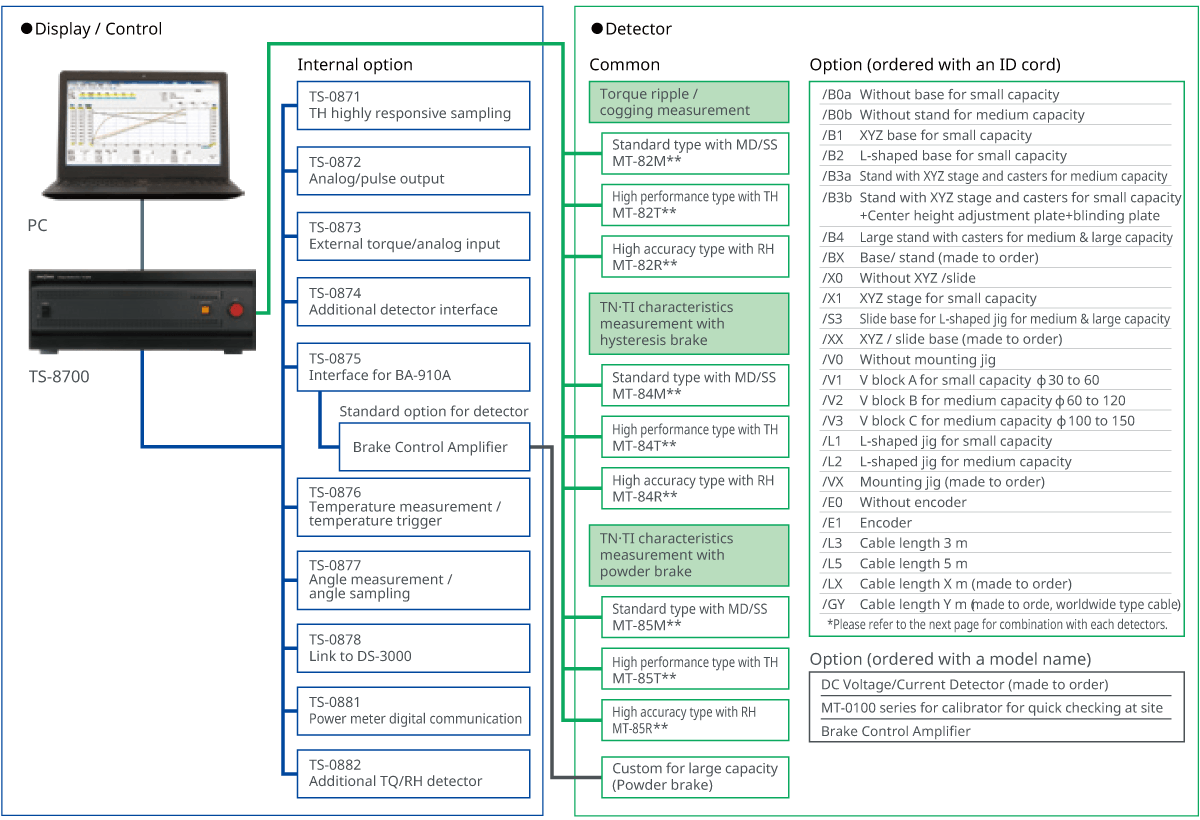

System Configurations

System Configurations 共通部 共通部 共通部 識別コードオプション 個別オプション 内蔵オプション

Specification

Motor to be measured DC motors, AC motors (excluding stepping motors)
Measurement items Torque, rotational speed, voltage signal input data, temperature*, rotational angle*, power meter digital input*
Torque input Our proprietary detectors (MD/SS, TH/RH/TQ*), external torque analog input*
Rotation input Our MP-9810 or RP series detector signals
Analog input 0 to ±10 V DC, 16 channels, 16 bit A/D. Connection cables must be provided by the customer.
Temperature input T-type thermocouple input *T-type thermocouple must be provided by the customer.
Measurement accuracy
 Torque ** ±0.05% FS (RH, TQ*)
±0.1% FS (TH-1000/2000)
±0.2% FS (MD/SS, TH-3000/H)
Rotation speed ** MT-84M/T/R series, MT-85M/T/R series: ±0.02% FS ±1 count
MT-82T** (excluding MT-82T15 and MT-82T25) ±0.06 r/min
MT-82M**, MT-82T15, MT-82T25, MT-82R15, MT-82R25 ±0.02 r/min
analog Linearity: within ±0.1% FS (1-second average), Temperature drift: ±0.01% FS/℃
temperature Conversion accuracy: within ±[0.5% of span + 0.5°C {temperature sensor accuracy}]
Temperature drift: Within ±0.2% of the span for a 10°C change.

*:option

**: After N-0 correction. 1 second average.
This eliminates the influence of fluctuating components caused by the device components and resonant components, including those in the test specimen.
Formula setting There are four ways to define calculation items (basic arithmetic operations) based on the input signal and previously calculated data.
Setting Measurement Conditions Torque detector, rotation detector settings
Control method Rotation control/torque control, measurement mode: automatic/manual, can save with a file name.
Measurement function ◎Measurement of constant value Measurement time 2 to 28,800 seconds
Number of data points • SS/MD: 512/1024/2048/4096/8192/Angle Sample
• TH:2048/4096/8192/16384/32768/Sample
• TH High Response (Effective when Option TS-0871 is installed: 10240/20480/40960/81920/163840/Sample)
• RH/TQ (Effective when optional TS-0882 is installed): 10240/20480/40960/81920/163840/Sample
• EXT TRQ IN (Effective when option TS-0873 is installed): 512/1024/2048/4096/8192/Sample
(Angle sampling is only possible in manual (N) mode, and the measurement time is limited to 60 or 120 seconds.)
◎Sweep measurement Measurement time Data size: 512: 2-1000 seconds; 1024: 4-1000 seconds
Number of data points • SS/MD: 512 / 1024
• TH: 2048 / 4096
• TH High Response (Effective when optional TS-0871 is installed): 10240 / 20480
• RH/TQ (Effective when optional TS-0882 is installed): 10240 / 20480
• EXT TRQ IN (Effective when optional TS-0873 is installed): 512 / 1024
◎Step measurement Number of steps 2-128
It is automatically calculated from the upper and lower torque limits or upper and lower rotational speed limits and the step width.
Step time 5-100 seconds
◎Pattern measurement Number of patterns 1～128
Number of repetitions 1 to 10 times
Transition time 1-100 seconds
Monitor display Numerical display: Up to 100 items displayed simultaneously. Trend display: Time axis display.
Graph display Display data by specifying the X and Y axes from the measurement data. Graph zoom in/out, line color and width can be specified, and comments can be entered.
Text display and registration on the graph; cursor, peak search function; overlay display function; up to 16 files.
Table display Display of measured values, data editing function
Comparator Specify upper and lower limits for the designated items, and display and output the judgment results for up to 6 items with a maximum score of 4 points.
I/F for MT detectors 2 channels (4 channels with option)
Save measurement results Proprietary format or text format
Modular PCs These are the specifications for personal computers capable of running TS-8700 software.
Intel CPU ® ™ Core ® i5 or higher (recommended)
4 GB or more of free memory (recommended)
HDD/SSD 256 GB or larger (recommended)
Optical drive (an optical drive capable of reading CD-R discs during installation or updates)
OS: Microsoft ® Windows ® Windows 10 Pro (64-bit version) • Japanese or English version • Versions 1803 through 22H2
OS: Microsoft ® Windows ® 11 Pro (64-bit version) • Japanese or English version • Up to version 24H2
Display resolution: 1366 x 768 (Full Wide XGA) or higher.
LAN port: Ethernet 100BASE-TX (onboard LAN)
*We cannot guarantee operation on all computers with the above specifications. Please provide your computer during the manufacturing process for operational verification.
Power supply AC100 to 240V ± 10% 50/60Hz
Power consumption Approximately 200 VA (AC100 V) or less
Insulation resistance 10 MΩ or higher (rated voltage DC 500 V)
Withstand voltage AC1500V for 1 minute
temperature and humidity Operating temperature range: +5 to +35°C
Operating humidity range: +30 to +80% RH (non-condensing)
Storage temperature range: -10 to +55 °C
Storage humidity range: +30 to +80% RH (non-condensing)
Altitude conditions, etc. Contamination level: 2
Installation Category: Category 2 Indoor
Maximum altitude: 2000 m
No condensation
Absence of corrosive gases
Outline drawings 420 (W) x 149 (H) x 450 (D) mm or less

Outline drawings
Weight 約15 kg
Applicable standards
CE marking Low Voltage Directive: 2014/35/EU EN61010-1
EMC Directive: 2014/30/EU EN61326-1 Class 1 Industrial Environment
RoHS Directive: 2011/65/EU EN IEC 63000
FCC CRF47 Part 15 Subpart B Class A
MT-8 *M* CE not supported
The MT-0100 series and MT-071 series are not RoHS compliant.
Accessories AC power cord, application CD-ROM, LAN cable (2m)

*In addition to the TS-8700 unit, an MT series detector and a detection stand for the motor are required. Furthermore, a separate fee will be charged for the adjustment and combination with the MT series detector.

Option

Model name name Remarks
TS-0871 TH High-Response Sampling The TH detector now supports high-response sampling (5.12 kHz).
TS-0872 Analog pulse output Torque and rotational speed analog output, and rotational speed pulse output functions will be added.
TS-0873 External torque analog input This is an optional feature added when using torque control with the analog output of the torque sensor.
TS-0874 Add detector interface Up to four MT torque sensors can be connected.
TS-0875 Interface for BA-910A This is added when connecting a BA-910 power amplifier.
TS-0876 Temperature measurement and temperature trigger This will be added if you are measuring temperature.
• Eight sensor-side connectors (male) are included.
TS-0877 Angle measurement and angle sampling We will add a function to sample angles using an external encoder.
• A cable connector (ER03-PB8M) is included.
TS-0878 DS-3000 Integration It can be linked with our DS-3000 series ESUFEEL.
TS-0881 Power meter digital communication It can connect to power meters from other manufacturers via LAN and digitally capture measured data.
TS-0882 Added TQ/RH detector Our TQ/RH type torque detectors can be connected to this device.
