Rotation stopper jig
CP-0610

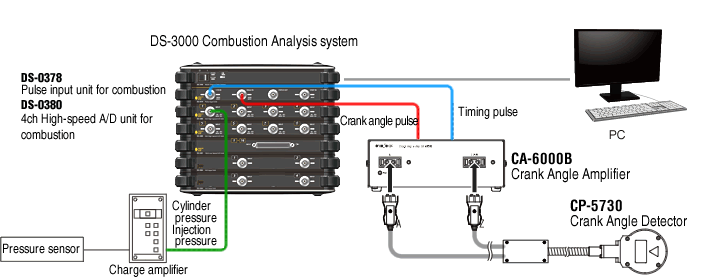

The CP-5730 crank angle detector and CA-6000B crank angle amplifier CP/CA series is a system for detecting the rotation angle of an engine's crankshaft, consisting of the CP-5730 optical fiber crank angle detector, the CA-6000B crank angle amplifier, and the CP-0610 rotation stopper jig. The CP-5730 crank angle detector detects the crankshaft rotation angle required for various engine performance tests such as combustion analysis with high precision and high response speed. It is an ultra-compact type with a built-in transmissive slit disc, and because it uses an optical fiber light transmission and reception method, it does not have an internal electrical circuit in the detector, exhibiting excellent vibration resistance and noise resistance. The CA-6000B receives the signal from the crank angle detector and outputs a TTL level angle signal and a 1P/R pulse signal.
*The actual product may differ slightly from the photo.
| Compatible amplifier | CA-6000B (Usable after matching *1) CA-6000・CA-6000A |
|---|---|
| Rotation stopper | CP-0610/CP-0600A |
| Cable | 5m direct fiber optic cable (protected by stainless steel flexible pipe, etc.) |
| Signal output | A phase (720P/R), Z phase (1P/R) |
| Body material | Titanium alloy, stainless steel, duralumin, brass (Cd-free material) |
| Vibration resistance and acceleration | Radial direction 500 m/ s² , thrust direction 500 m/ s² |
| Maximum rotational speed | 15,000 r/min |
| Operating temperature range | 0 to +120°C (connector section: 0 to +40°C) |
| Outline drawings | 61.2 (W) x 57 (H) x 41 (D) mm
|
| Weight | Approximately 750 g (rotating part approximately 270 g) |
| price | |
| Option | IX-041 延長ファイバーケーブル（5 m）： IX-042 延長ファイバーケーブル（10 m）： |
| Compatibility detector | CP-5730/CP-5720A |
|---|---|
| Body material | Stainless steel, aluminum alloy |
| Vibration resistance and acceleration | Radial direction 500 m/ s², thrust direction 500 m/ s² |
| Single-unit resonance point | Around 400 Hz (The above is data from in-house testing; it may vary depending on the installation conditions.) |
| Clamp mounting dimensions | 190–240 mm (Please refer to the external view diagram for details) |
| Outline drawings | 61.2 (W) x 57 (H) x 41 (D) mm
|
| Weight | Approximately 345 g (arm portion approximately 105 g) |
| price |
please note:
To customers using CP-0600A and considering purchasing CP-0610:
The clamp mounting dimensions for CP-0610 (190-240mm) differ from those for CP-0600A (220-310mm).
Please note that modifications to jigs and other fixtures may be necessary.
Please refer to the external view diagram for details.
